Revolutionizing HVAC Component Production.
Automated Heating Element Processing for Defrost Applications
In modern refrigeration and industrial cooling systems, heating elements used in defrost applications play a vital role in ensuring efficiency, safety, and reliability. These components are designed to prevent ice buildup on freezer and evaporator coils, a problem that can seriously reduce heat exchange performance and increase energy consumption.
Defrost heaters are typically stainless steel tubular heating elements, often fitted with stainless steel fins for rapid heat dissipation. Their function is straightforward but essential: to deliver controlled heat that melts frost and ice accumulation, helping refrigeration units maintain optimal operating conditions.
Engineered for Performance and Durability
Defrost heating elements are built to withstand harsh, moisture-rich environments. One of their most important design features is the vulcanized joint: a double-insulated cable is vulcanized directly to the end of the heating element, ensuring complete water resistance and long-term reliability.
The element itself is manufactured in considerable lengths and with a high degree of straightness to ensure precise assembly within heat exchangers. The ends are tapered to enable seamless integration into the waterproof vulcanized joint. This final geometry is critical, since any inaccuracy at the ends can affect sealing, electrical insulation, or mechanical stability.
That is why precise end processing is such a key factor in the overall quality of the finished heating element.

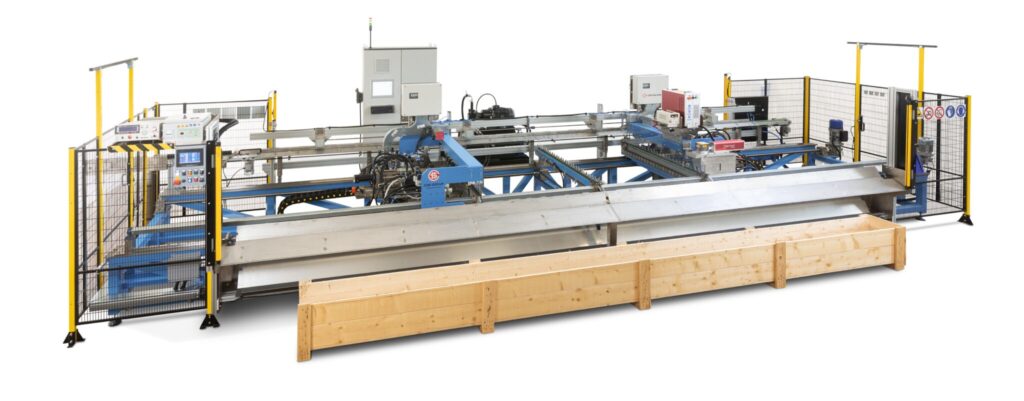

OAKLEY INDUSTRIAL MACHINERY’s Automated Multi-Operation Transfer Machine
At the center of efficient defrost heater production is advanced automation. OAKLEY INDUSTRIAL MACHINERY has developed an automated multi-operation transfer machine specifically designed to process the ends of defrost heating elements directly at the rolling mill exit.
As non-annealed elements leave the rolling mill, the machine collects them by means of a conveyor and performs a complete sequence of end-processing operations in a fully automated cycle. The system can handle heating elements up to 7,000 mm long, with rolling mill length tolerance of up to ±0.5%.
This machine is a key part of a complete production line for heating elements used in tube heat exchangers and finned heat exchangers.
How the Machine Works
The operator enters the required element length directly through the HMI. From there, the system automatically manages the entire process:
- Measuring and centering for precise positioning
- Controlled plug extraction to ensure the internal plug is fully removed
- Pin cutting to the exact specified length
- Stretching to compensate for any length variation caused by the rolling process
- End diameter reduction to prepare the element for a perfect fit within the waterproof vulcanized joint
- Electrical testing to verify dielectric strength and ohmic value
- Laser marking for clear, permanent traceability
- Automatic separation of non-compliant elements from approved production
Benefits for Manufacturers
For producers of defrost heating elements, integrating OAKLEY INDUSTRIAL MACHINERY’s automated transfer system offers major competitive advantages.
- Lower production costs
Automation reduces the need for manual intervention, lowers labor requirements, and minimizes the risk of human error. Scrap rates also decrease thanks to integrated testing and automatic rejection systems. - Greater precision and consistency
The machine delivers outstanding straightness, exact pin cutting, and precise end diameter reduction, all of which are essential for achieving a reliable waterproof vulcanized joint. This consistency leads to higher product quality and fewer failures. - Higher automation and productivity
By operating directly at the rolling mill exit, the system eliminates intermediate handling and streamlines production flow. Continuous processing results in greater throughput and shorter production times.
In defrost heating element manufacturing, precision at the ends of the elements has a direct impact on performance throughout the entire production process. With its automated multi-operation transfer machine, OAKLEY INDUSTRIAL MACHINERY enables manufacturers to achieve higher quality, lower costs, and a more automated, efficient future in heating element production.
Talk to our experts to learn more.
