The tube presetter is an essential device used atinitial stage of the filling process, ensuring that tubes are correctly positioned for precise filling with magnesium oxide (MgO). By preparing tubes for simultaneous transfer to the filling machine, the tube presetter streamlines the workflow and improves efficiency in heating elements production. It is available in both automatic and manual versions to suit different production requirements.
The concrete advantages that make the difference

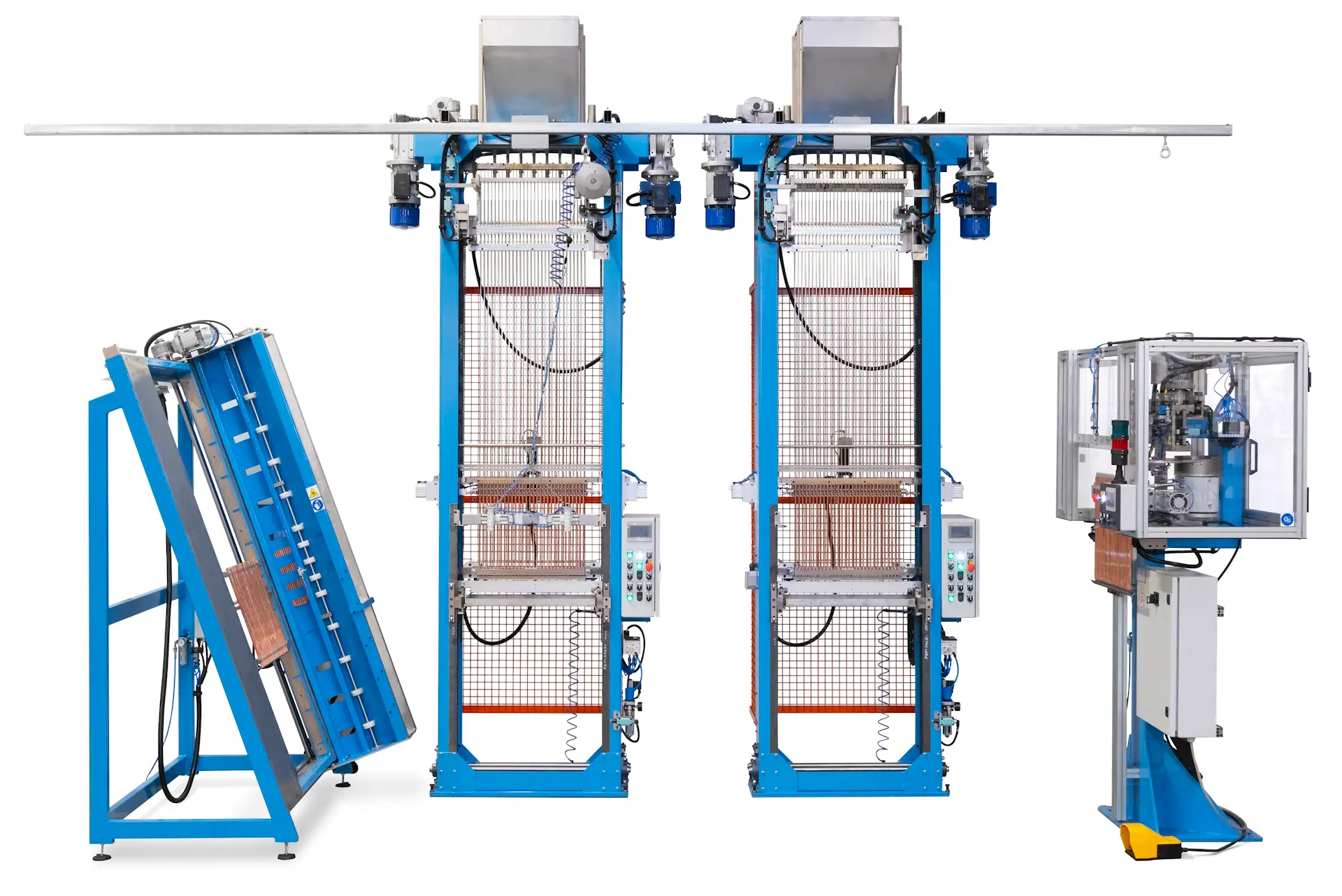

Fully compatible with filling automation solutions, ensuring smooth in-line operation.

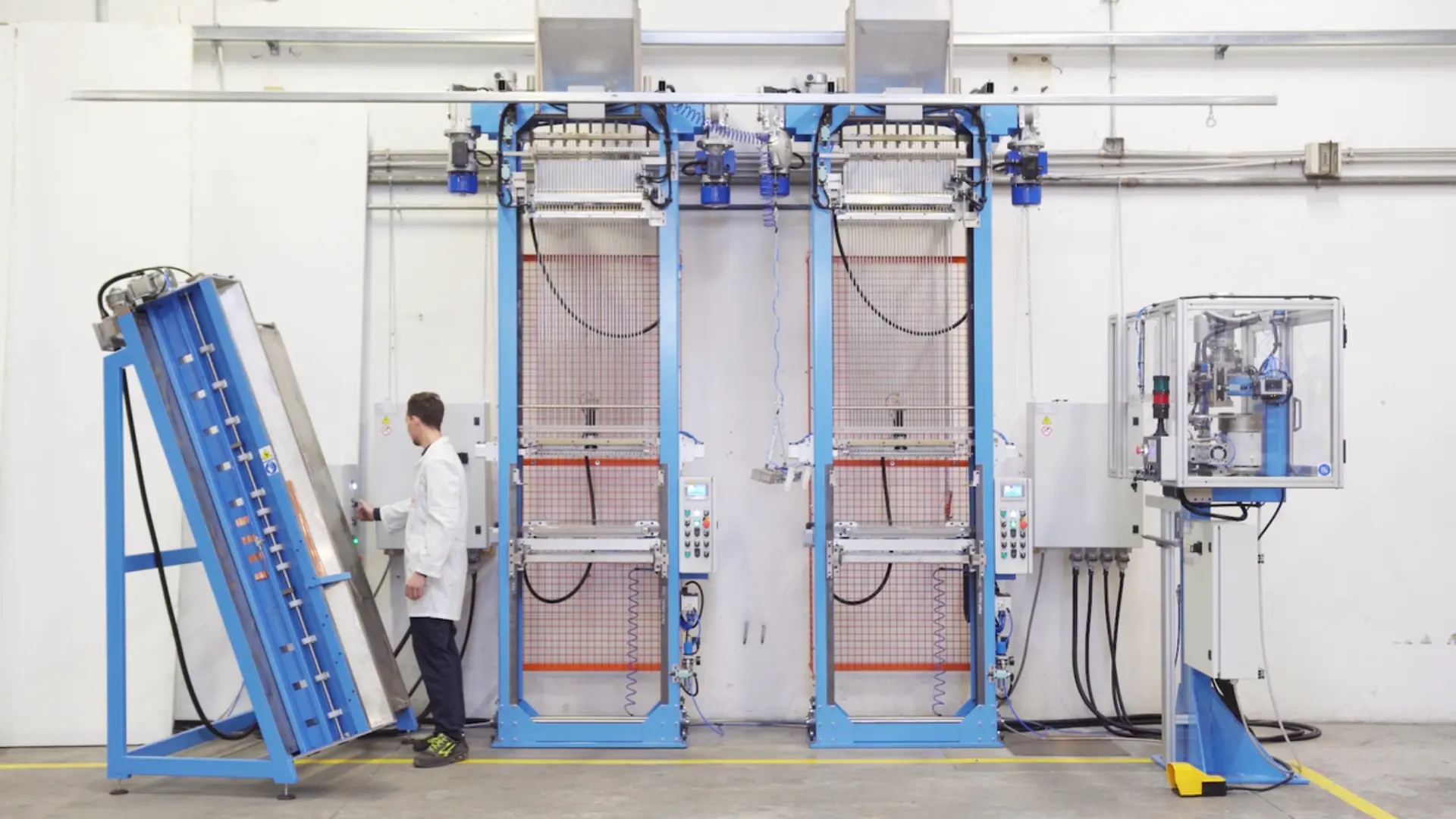

Only one operator is needed to manage and monitor the machine group, supporting uninterrupted production cycles.
Coordinated operation enables production rates of up to 600 pieces per hour.

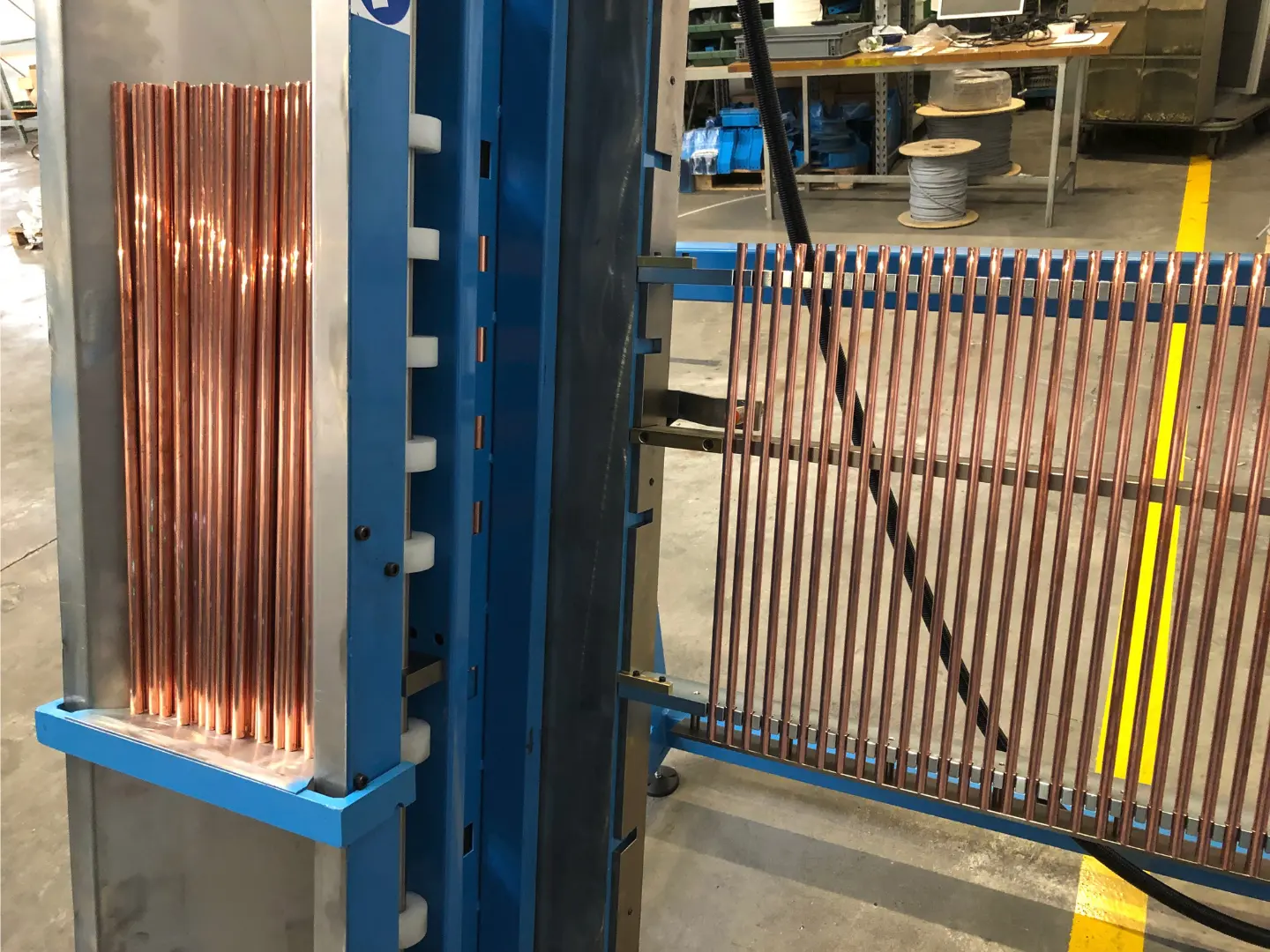

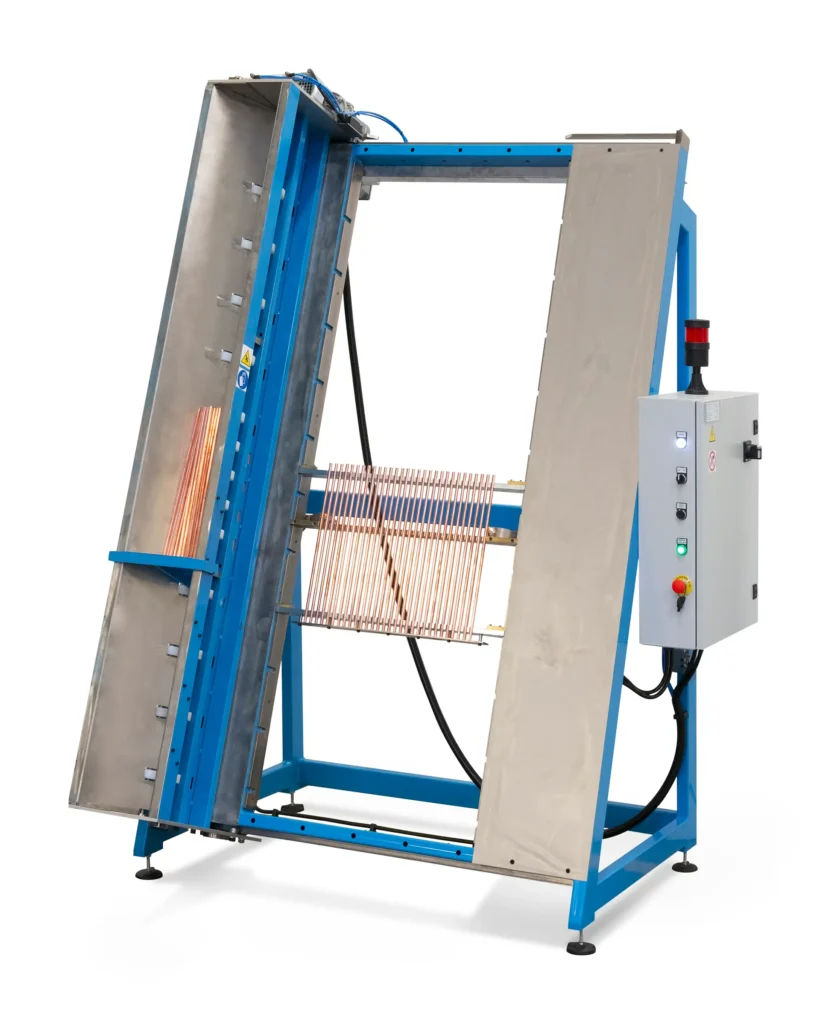

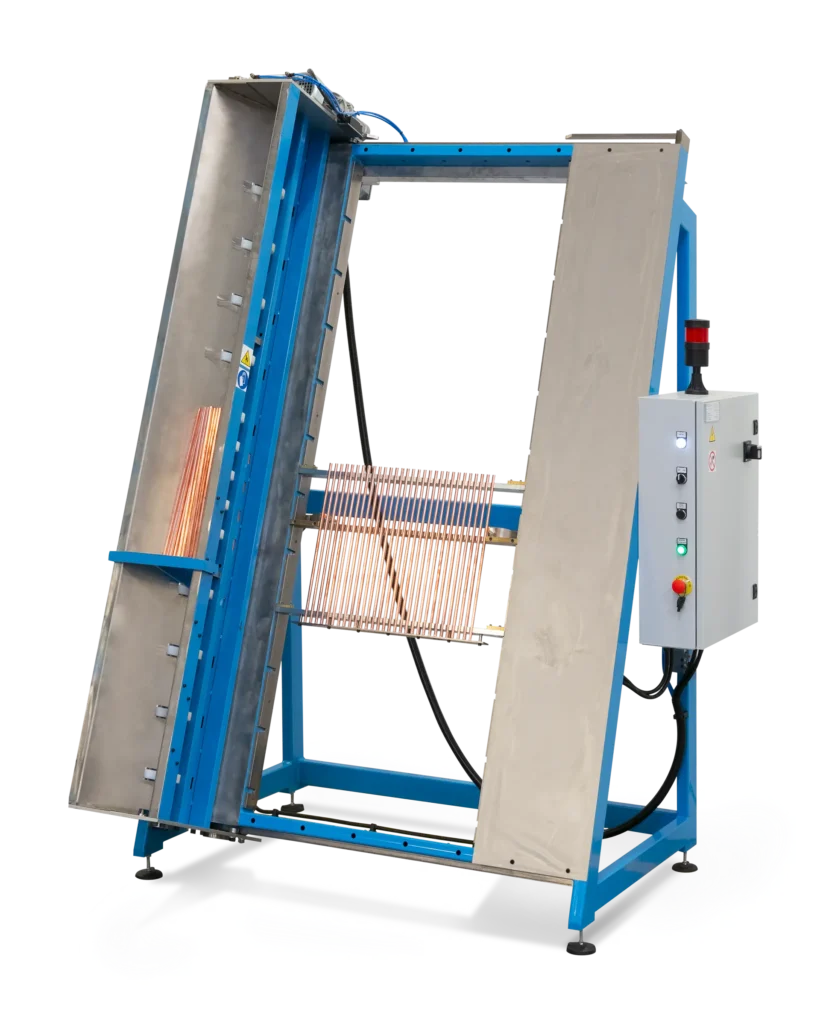

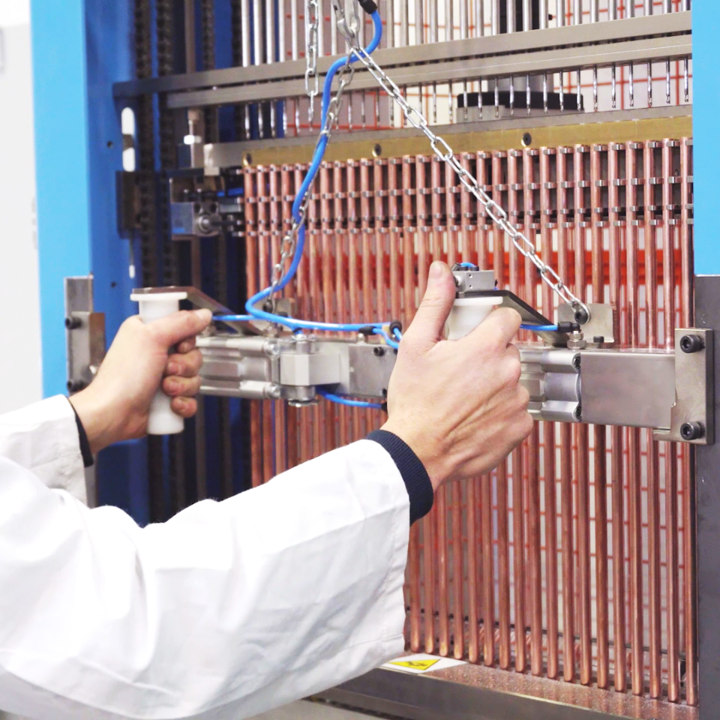

Operators manually load tubes into the hopper feeder, which autonomously manages tube movement to the device’s left or right. Tubes are automatically deposited at pickup stations in the optimal position for the filling machine. When a full set of tubes is picked up—via pneumatic or manual clamp—the hopper feeder immediately prepares the next set, ensuring a continuous material flow and adapting dynamically to production demands.

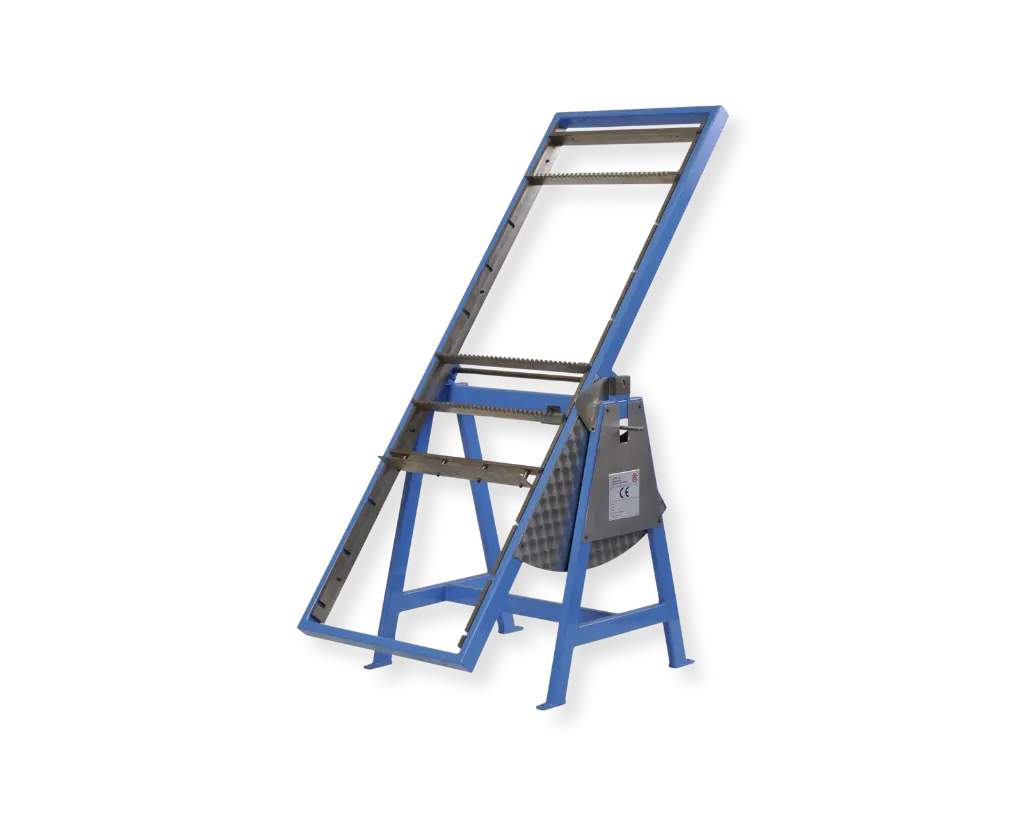

The manual tube presetter allows operators to quickly and accurately prepare tubes for simultaneous transfer to the filling machine. This centralized preparation minimizes idle time and enhances overall productivity. The manual unit is compatible with tube diameters ranging from 7.2 mm to 12 mm.
Discover all the machine details
Hopper-like feeder capacity | n° 200 |
Cycle time to preset the tubes | 60 sec. |
Length of tubes | 260-2.000 mm |
Diameters (to be defined) | mm from 7,5 to 10 |
Pneumatic supply | 6 Ate |
Installed power supply | 0,5 KW |
Alimentazione elettrica | To be defined |
Dimensions | 1.700x1.300x2.500 mm |
