Oakley Industrial Machinery brings extensive expertise in coil preparation and offers tailored solutions for coil-pin welding in heating elements production. Depending on production requirements, OIM provides assembly units with manual, semi-automatic, or fully automatic operation.

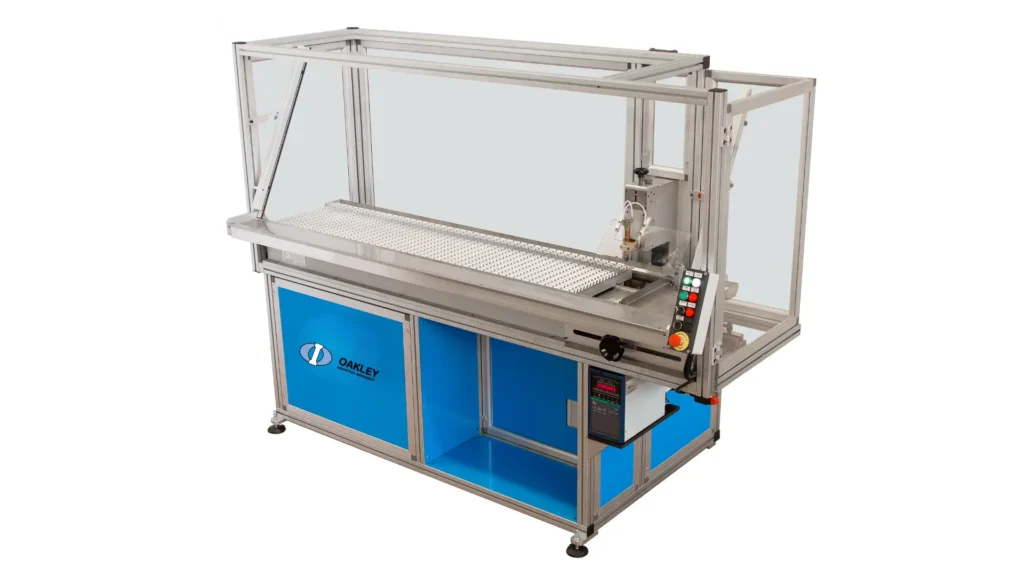

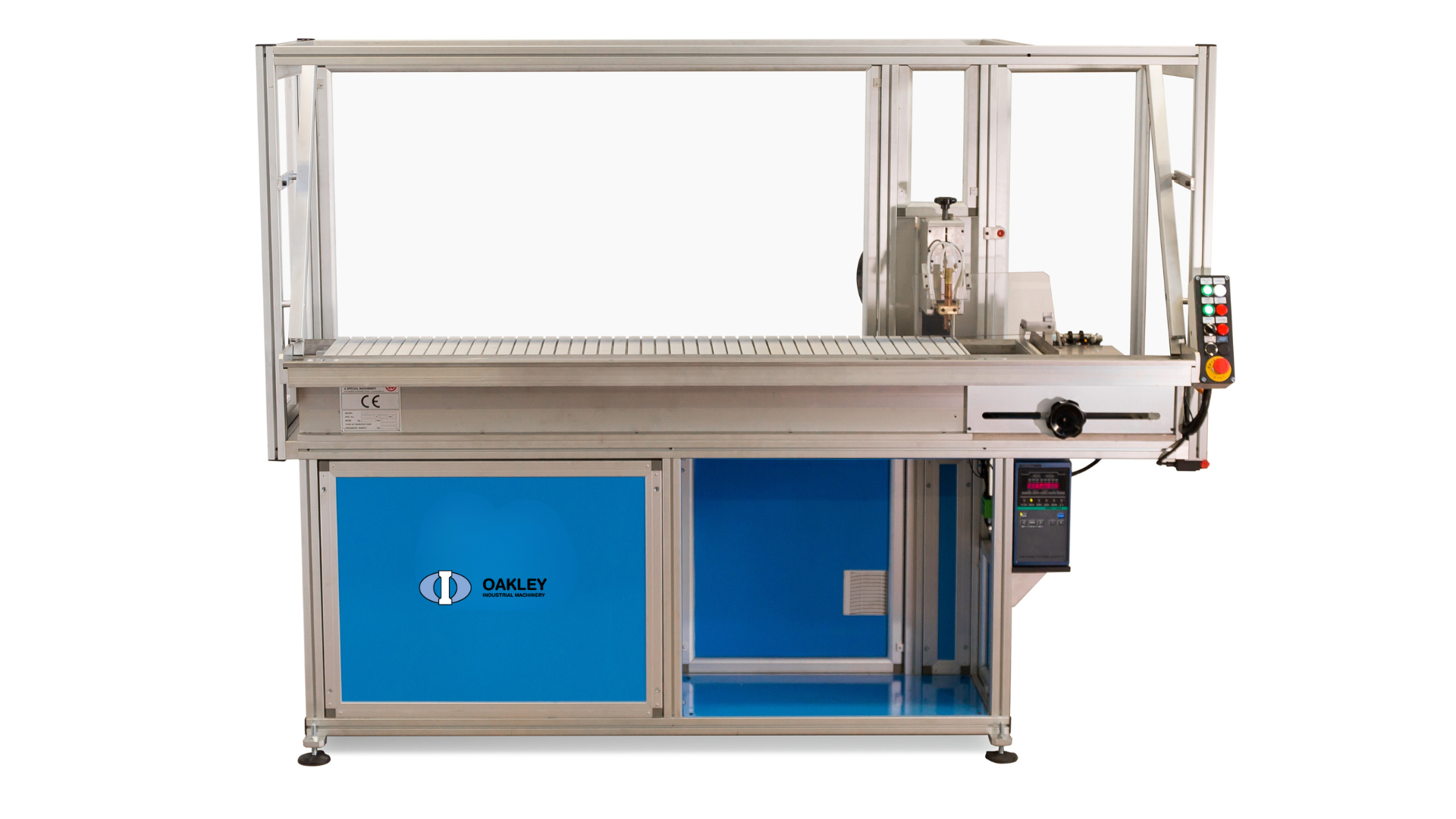

The semi-automatic coil-pin welding machine automatically welds coils to terminal pins after the operator manually assembles the components. Loaded onto a walking beam conveyor, each unit is individually transferred to the welding station and then to the unloading point. A pneumatic alignment system beneath the electrode ensures precise and repeatable welds, maximizing productivity and consistency.
The concrete advantages that make the difference
Welding is efficient and independent of operator skill.
Spot welding is consistently accurate at the defined points.
Automation reduces manual handling and enhances operator safety.
Discover all the details of the machine

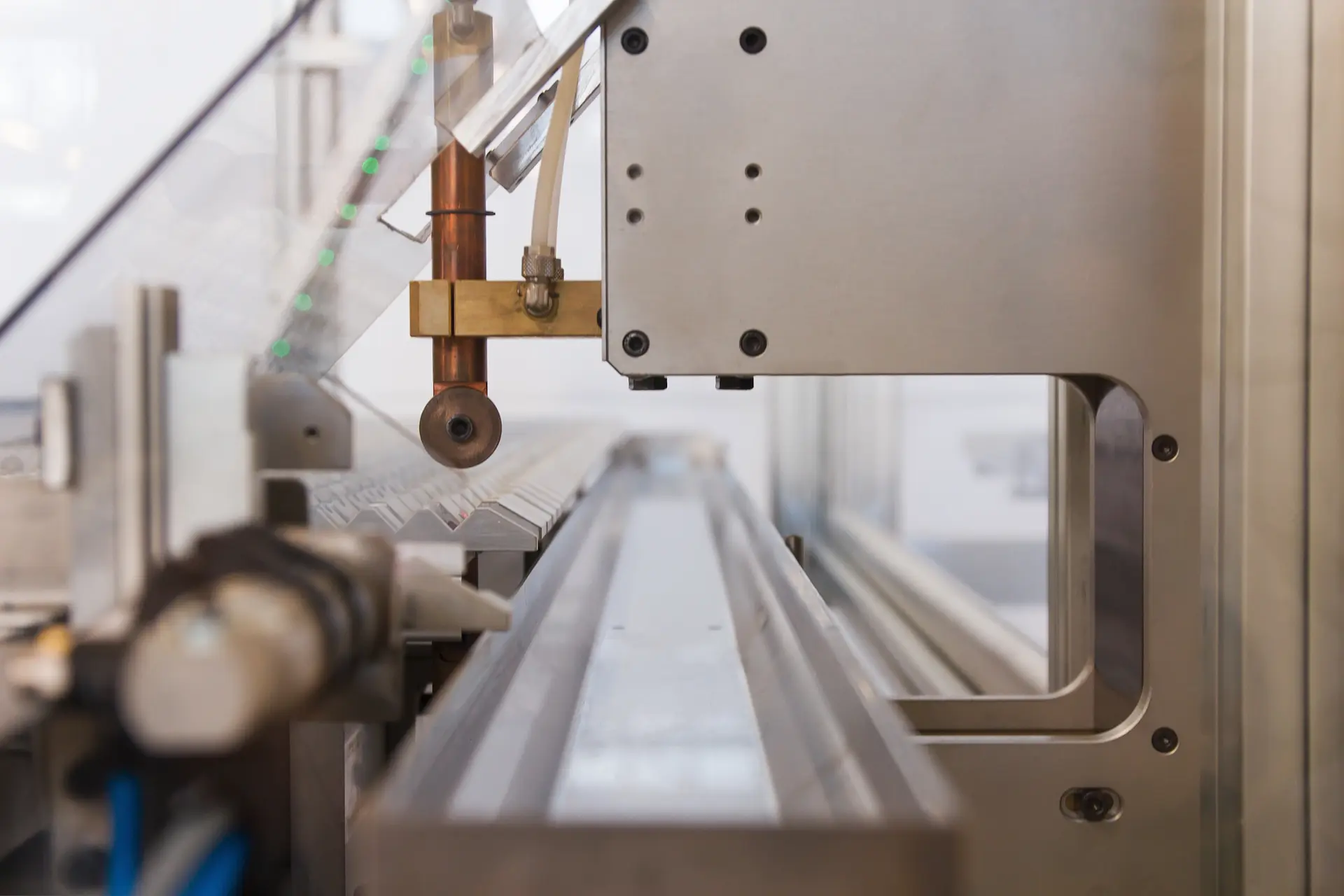

WALKING BEAM TO TRANSFER THE PRE-ASSEMBLED TERMINAL PIN/COIL from the loading position to the welding station. After welding, the parts are discharged into a stainless steel container.
WORKING TABLE IN STAINLESS STEEL complete with a device to unload and guide the terminal pin/coil assembly onto the walking beam.

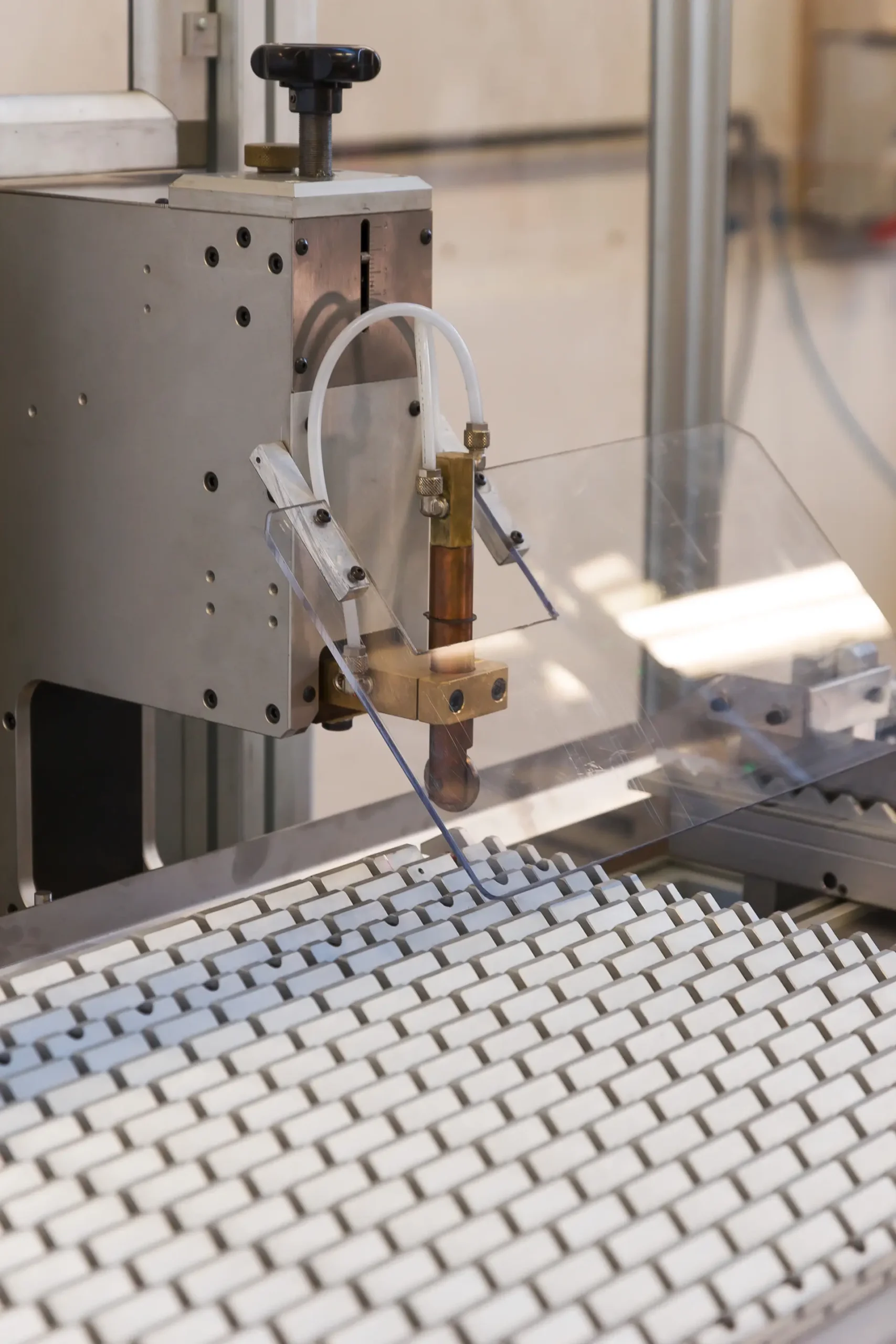

PNEUMATIC DEVICE TO ALIGN THE TERMINAL PIN/COIL ASSEMBLIES under the welding electrode to guarantee repeatability of the welding process, ensuring every weld is made at the same point on the coil.

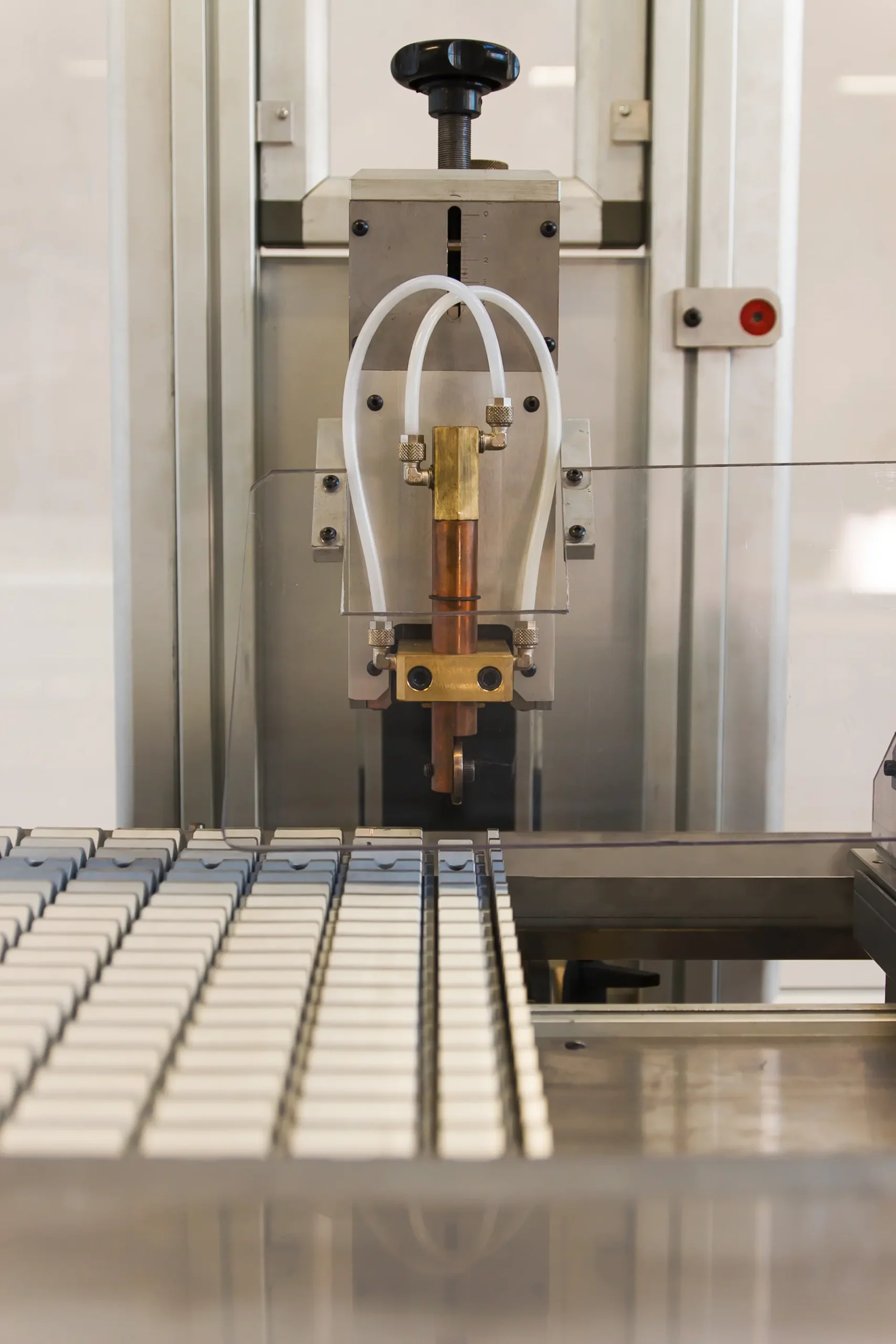

15 KVA SPOT WELDER complete with process control.
Cycle time | 3-4 sec. |
Terminal pin length | 45-200 mm |
Terminal pin diameter | 2,5-4 mm |
Coil length | 50-1.200 mm |
Coil OD | 1,8-4 mm |
Power supply | to be defined |
Installed power | 15 KVA |
Pneumatic supply | 6 Ate |
Water supply | 2 l/min |
Welding machine | to be defined |
Dimensions | (a x b x h) 2325x1245x1770 mm |
Weight | 400 kg |
Set-up times | 2-3 min. |
