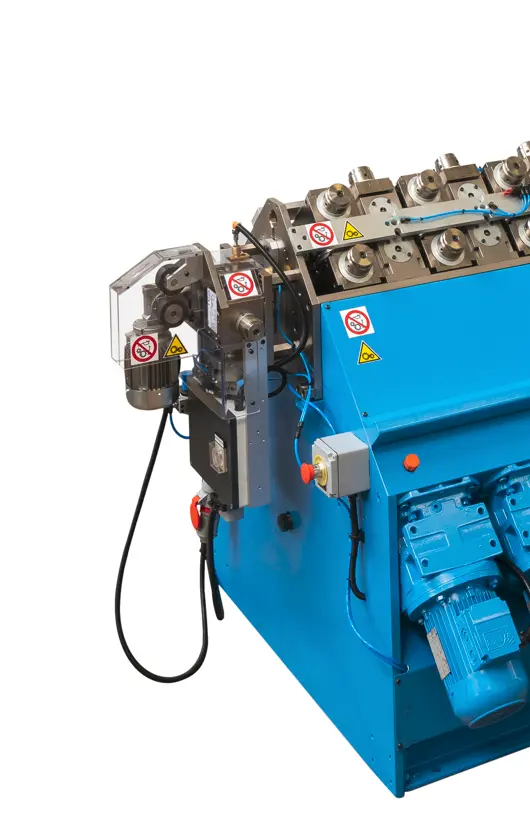

Oakley Industrial Machinery’s axial marking device is designed to integrate seamlessly with the rolling mill, allowing accurate marking of heating elements along their length (parallel to the tube axis). This marking device for heating elements provides a versatile and efficient solution for product identification while maintaining smooth production flow.
The concrete advantages that make the difference
Suitable for various tube diameters.
Easily integrates into existing reduction mills.
Character wheel displacement ensures optimal engraving depth.

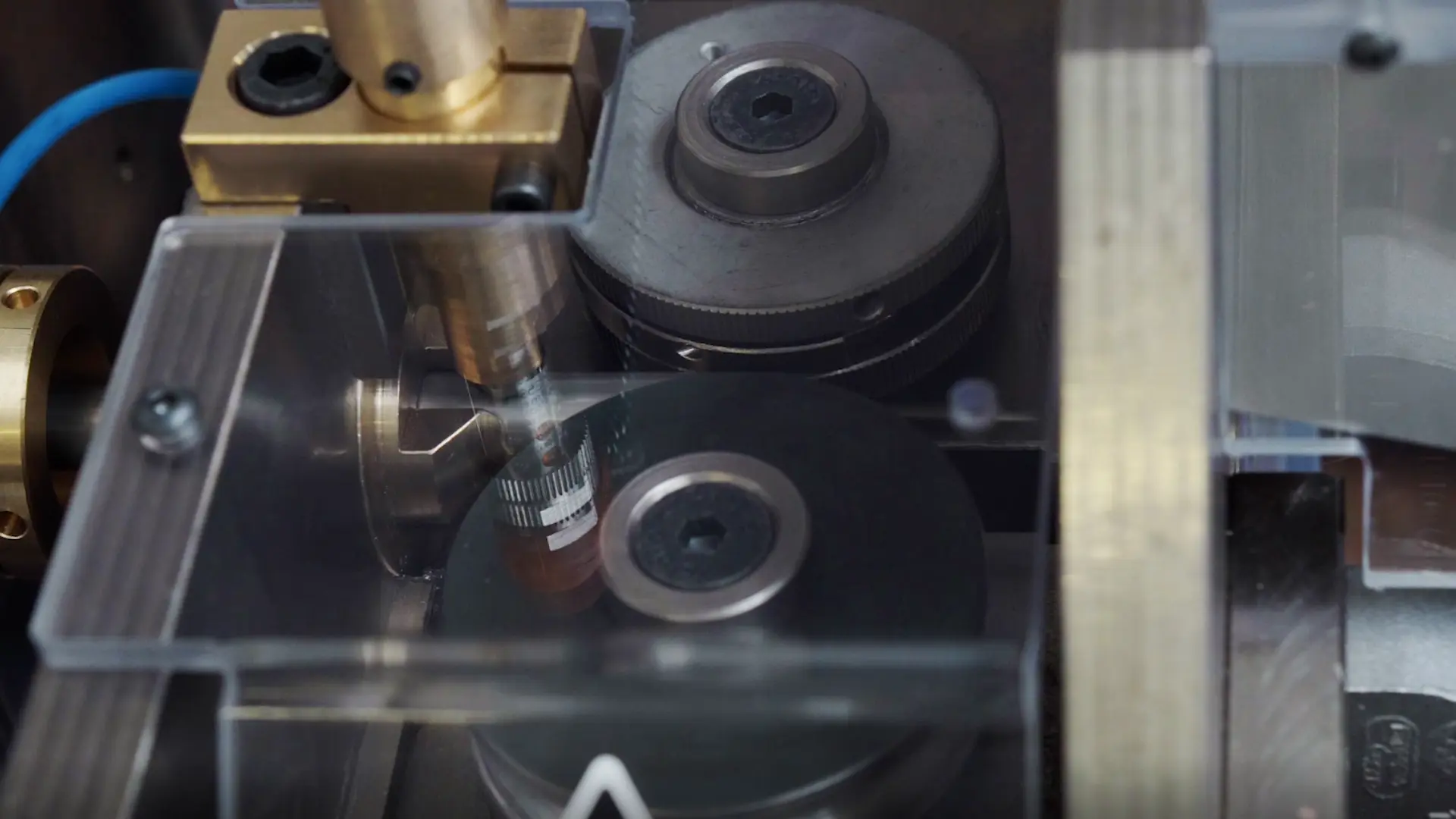

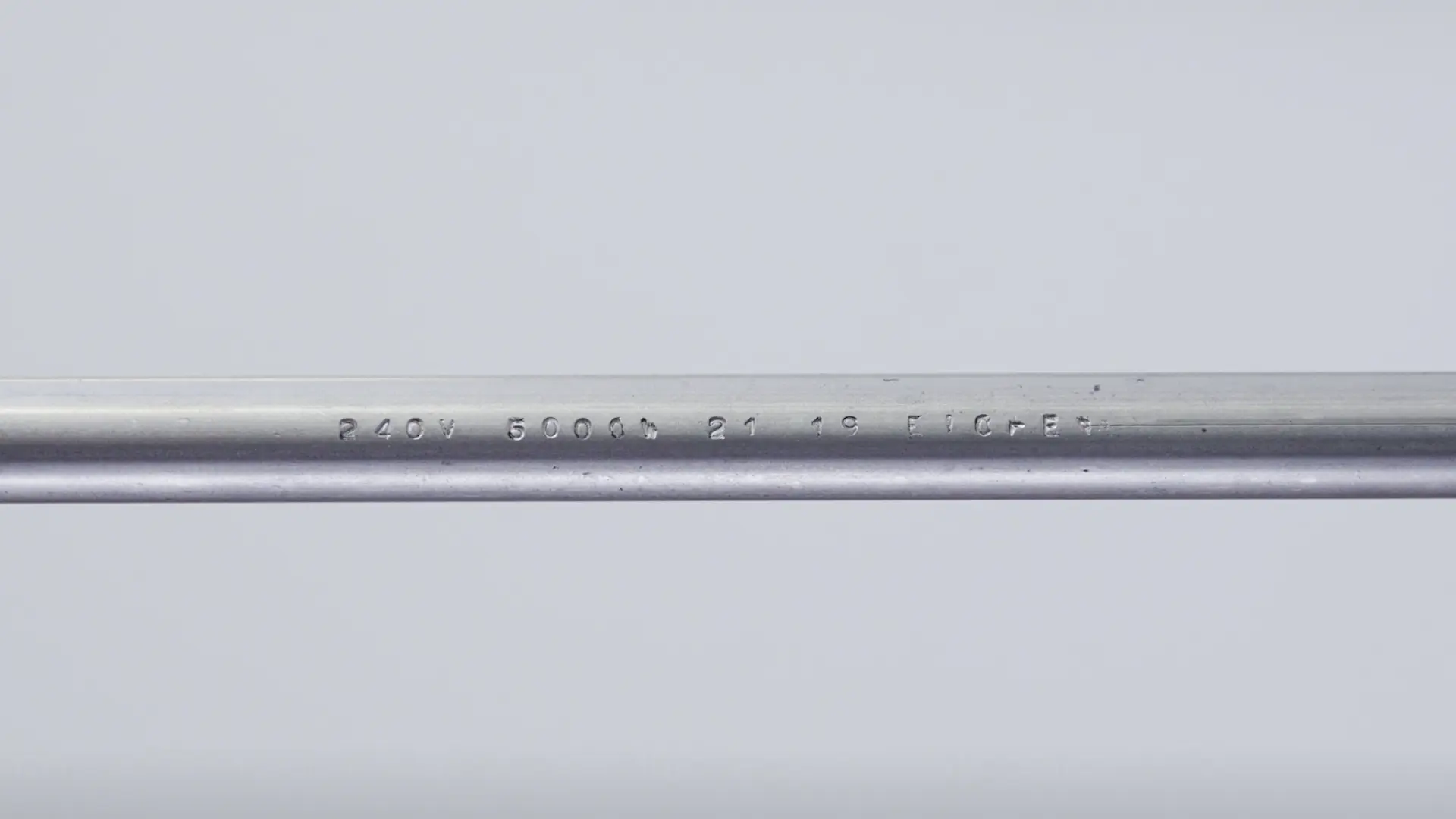

The axial marking system uses interchangeable characters, enabling the marking of key identification data such as voltage (V) and power (W) values. After exiting the roll reduction mill, the heating elementgoes through two non-motorized rolls: the first carries the marking characters, and the second serves as a counter-roller to ensure precise pressure and clear, accurate marking.
Practicality is a key feature: the character-bearing roll is quickly removable, simplifying changeovers. Both rolls are equipped with a micrometric adjustment system, allowing precise positioning according to the tube diameter, ensuring consistent, high-quality marking every time.
Discover all the machine configurations
The beginning of marking is in a fixed position with reference to the element end.
The beginning of marking is in a programmable position – from 50 to 200 mm with reference to the element end.
The beginning of marking is in a fixed position with reference to the element end.
Discover all the machine details
Available characters (including spaces) | max 65 |
Character set (numbers/letters) | To be defined |
Tube diameter | min 6 mm, max 16 mm |
Character change time | min 2-3 |
