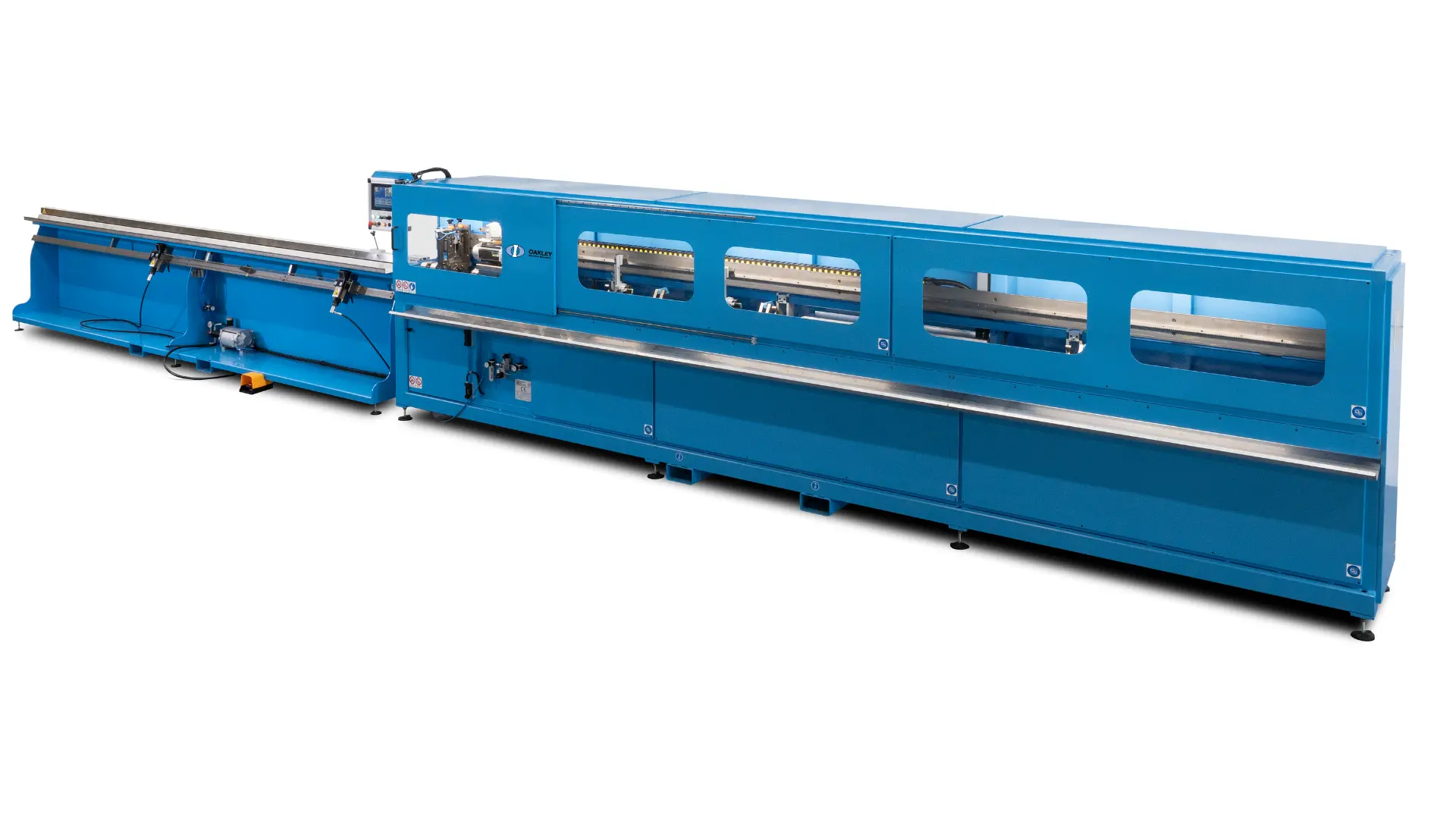

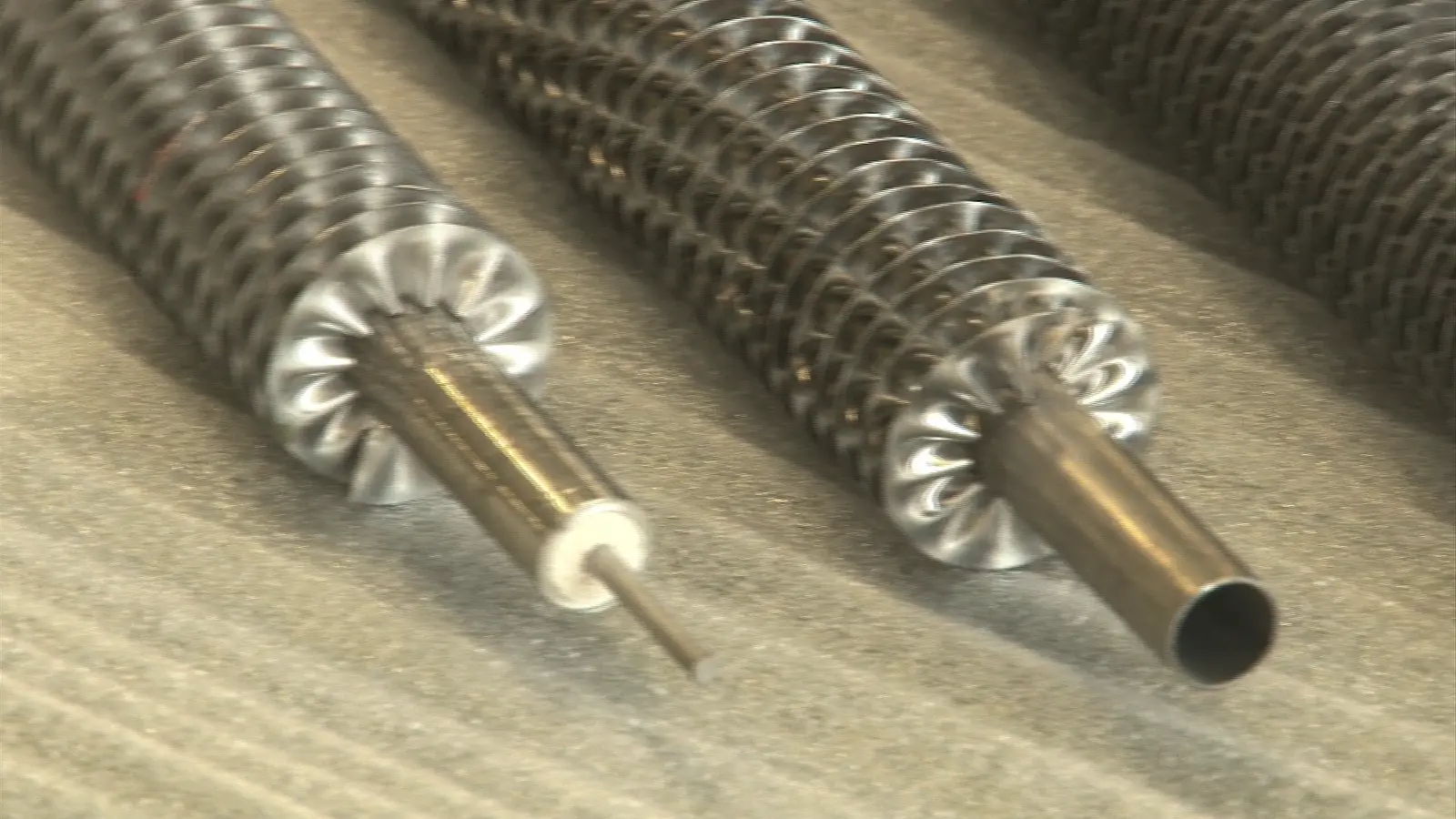

Oakley Industrial Machinery’s finning machine for heating elements efficiently and accurately wraps a strip around a tube or tubular heating element, forming high-quality fins using a state-of-the-art numerical control (NC) system.
To accommodate diverse production requirements, the machine can be equipped with additional tooling kits to apply fins to heating elements of varying diameters and strip widths. Operators can easily set and recall fin pitch and other key parameters directly from the intuitive control panel, eliminating the need for time-consuming re-tooling.
The concrete advantages that make the difference
Doubles productivity compared to traditional finning systems.
Single or multiple fin configurations set directly from the operator panel.

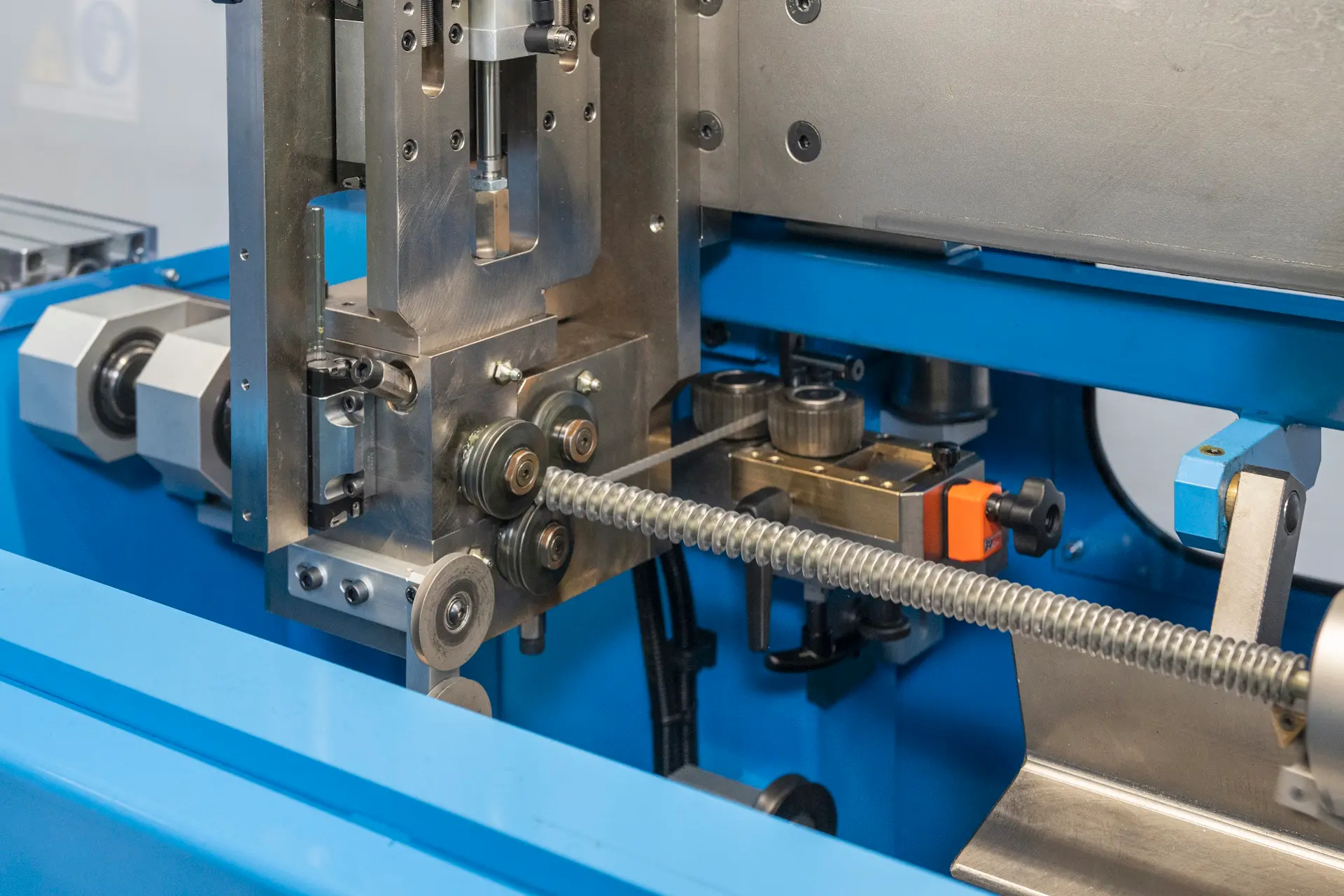

Position indicators allow fast recall of head and roll positions, simplifying setup and reducing downtime.
Discover all the details of the machine
SUPPORT FOR THE ELEMENTS before finning

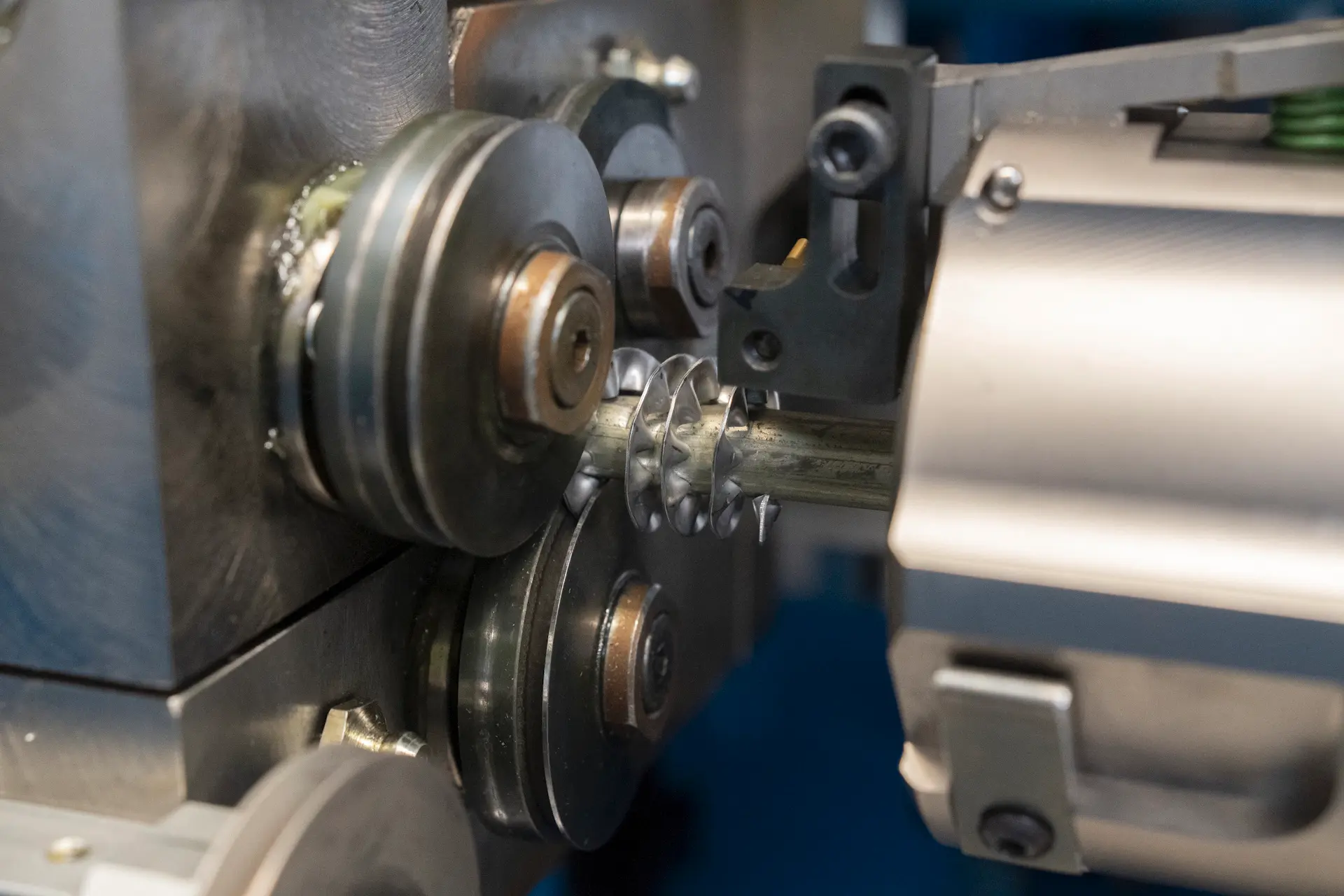

FINNING HEAD
The finning head stops at the loading position indicated by the operator interface, ensuring the correct distance between the end of the tube and the first fin.
HORIZONTAL DEREELER
CRINKLING DEVICE
FINNING CARRIAGE
The element is pushed forward until it stops against the stop on the rotating spindle of the finning carriage.
UNLOADING SECTION
of heating elements produced
Discover all the optional for the machine

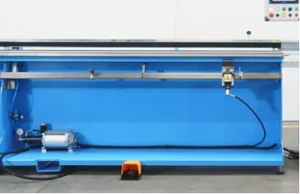

Pneumatic device to press the ends of the tube to improve grip between the tube and fin for tube thickness up to 0.5mm.
CSM device to facilitate the unwinding of the strip.

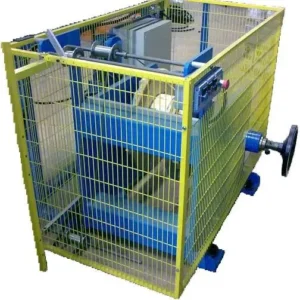

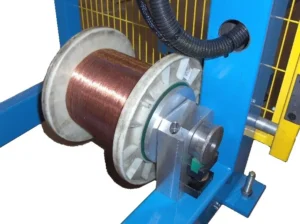

Coil holder with braking system.
Set of spare parts for tubes with different diameters, finning wheel set, and toothed wheel set for forming the fold on the fin.
Pneumatic device to press the ends of the tube to improve grip between the tube and fin for tube thickness up to 0.5mm.
Tube material | steel, stainless steel |
Tube diameter | 6-16 mm |
Minimum tube length | 300 mm |
Min. tube thickness – for finned tube | 1 mm |
Min. tube thickness – for finned heating element | 0,40 mm |
Strip material | steel, stainless steel |
Strip width | 6-12 mm |
Strip thickness – steel, stainless steel, copper | 0,3-0,5 mm |
Fin pitch (adjustable) | 2-15 mm |
Winding speed (adjustable) | 0/1000 giri/min |
Supply voltage | V/Hz to definine |
Pneumatic supply | 6 Bar |
Installed power | 8 KVA |
Dimensions | 7000x1800x1600 mm |
