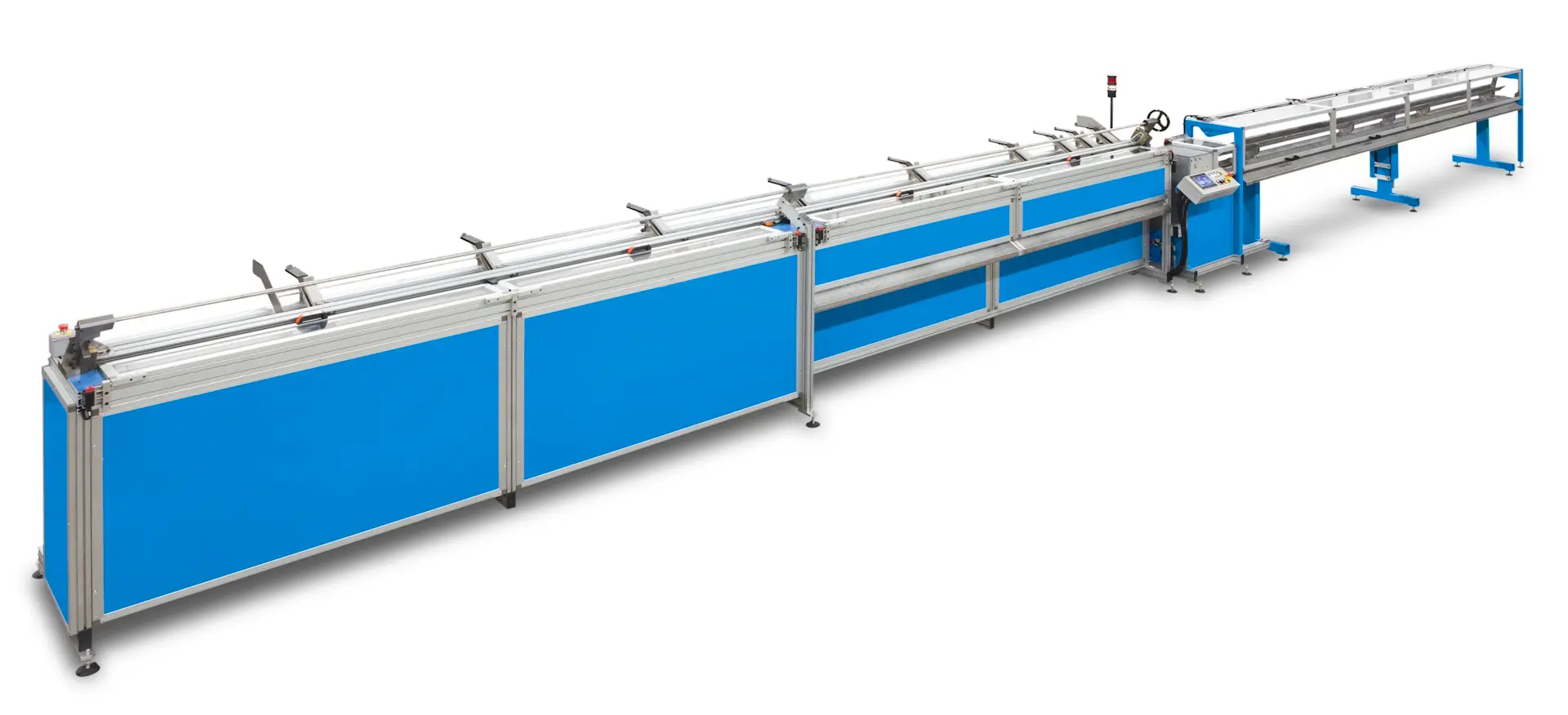

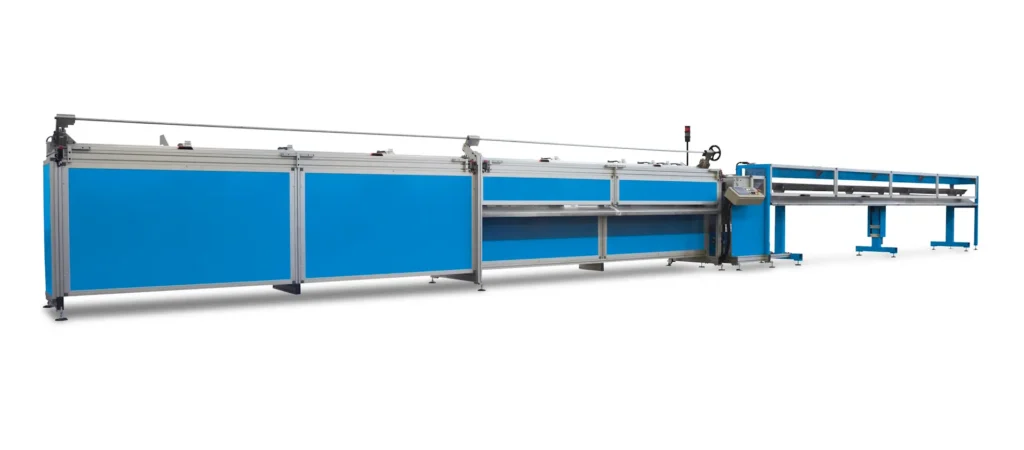

Oakley Industrial Machinery’s automatic tube cutting machine with NC (numerical control) is engineered to deliver maximum efficiency and flexibility in tube cutting for heating elements and other tubular components. Designed for cutting tubes in straight lengths, this advanced system enables multiple cut lengths to be executed on the same bar, providing exceptional versatility in heating elements production.
The cutting line uses a controlled-axis pusher to ensure high-precision tube advancement and consistent cutting accuracy. With optimized nesting functions, the system significantly reduces waste by maximizing material usage—allowing up to three different cut lengths to be produced from a single bar with virtually zero scrap. The dual-unloading system automatically separates finished pieces, streamlining downstream handling and logistics.
The concrete advantages that make the difference
Discover all the details of the machine
SLIDE LOADER
CUTTING UNIT

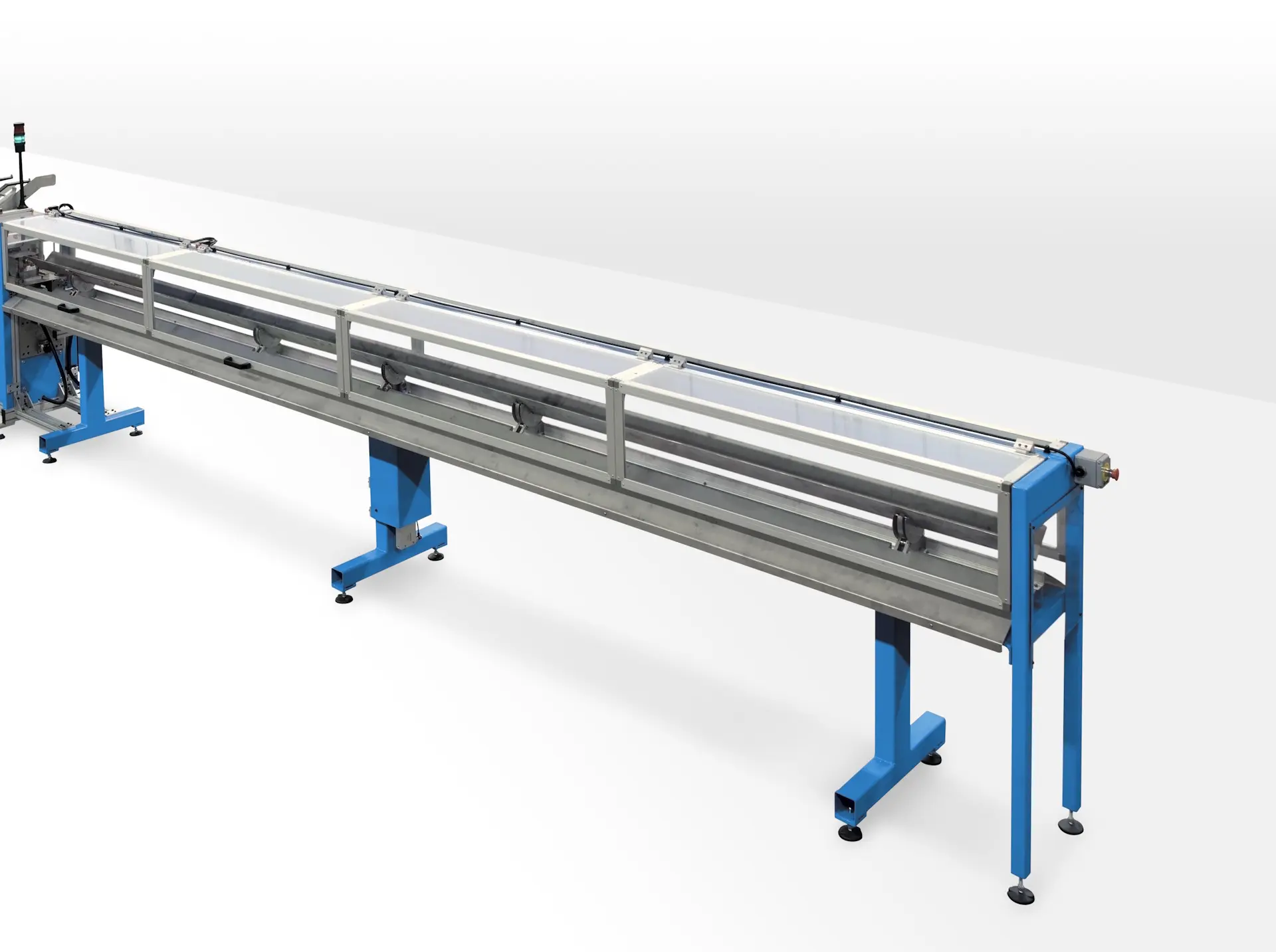

DOUBLE EXHAUST STRAP
Numerically controlled pusher
for handling up to 3 different lengths of the same tube
UNLOADING SECTION FOR SCRAPS

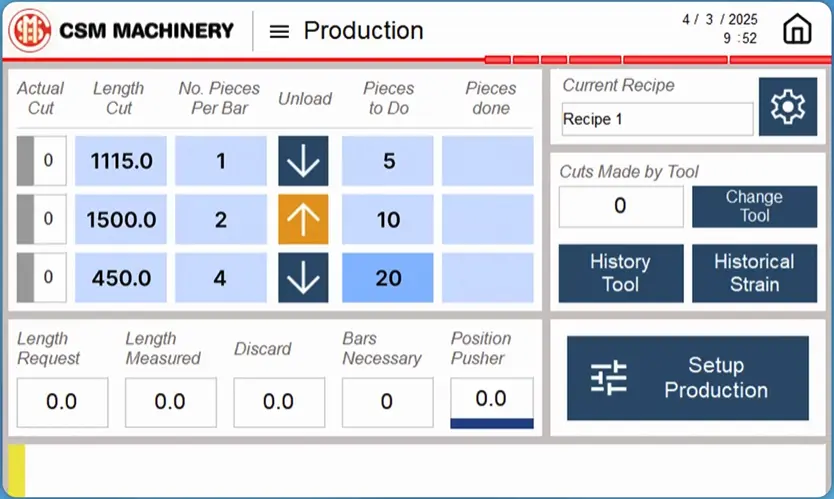

CNC CONTROL PANEL
to configure cutting options
Discover all the configurations of the machine
The orbital score and pull-apart system is designed to overcome the problems with orbital cutting of a similar conception but realized using engraving wheels. The score and pull-apart system is an orbital tube cutting process that uses either a rotary blade cutter or insert cutting technology. These methods progressively score the tube along a circular section of its wall thickness, thinning it until a clamp pulls-apart the segment. This system ensures chipless and burr-free tube cuts with perfectly smooth edges and no deformation.
The saw cutting system incorporates a high-resistance circular blade that rotates at high speed to perform rapid and clean cuts. This technology offers the capabilities to manage different types of tube thickness, as well as different materials, with the precision of ninety-degree cuts. Furthermore, thanks to the robust materials and the cutting technique, the tool’s lifespan is extended, ensuring sustained durability and reliability.
Guillotine cutting lines are designed for producing custom-sized tubes with the internal diameter calibrated at both ends and customized lengths. This type of system is primarily selected for medium to large-scale production, ensuring rapid cutting diameter changeovers. The subsequent punching operation, used to eliminate the “heart-shaped” distortion caused by the cut, can be performed manually via a punching gun or automatically with a punching transfer system downstream of the tube cutting.
The orbital score and pull-apart system is designed to overcome the problems with orbital cutting of a similar conception but realized using engraving wheels. The score and pull-apart system is an orbital tube cutting process that uses either a rotary blade cutter or insert cutting technology. These methods progressively score the tube along a circular section of its wall thickness, thinning it until a clamp pulls-apart the segment. This system ensures chipless and burr-free tube cuts with perfectly smooth edges and no deformation.

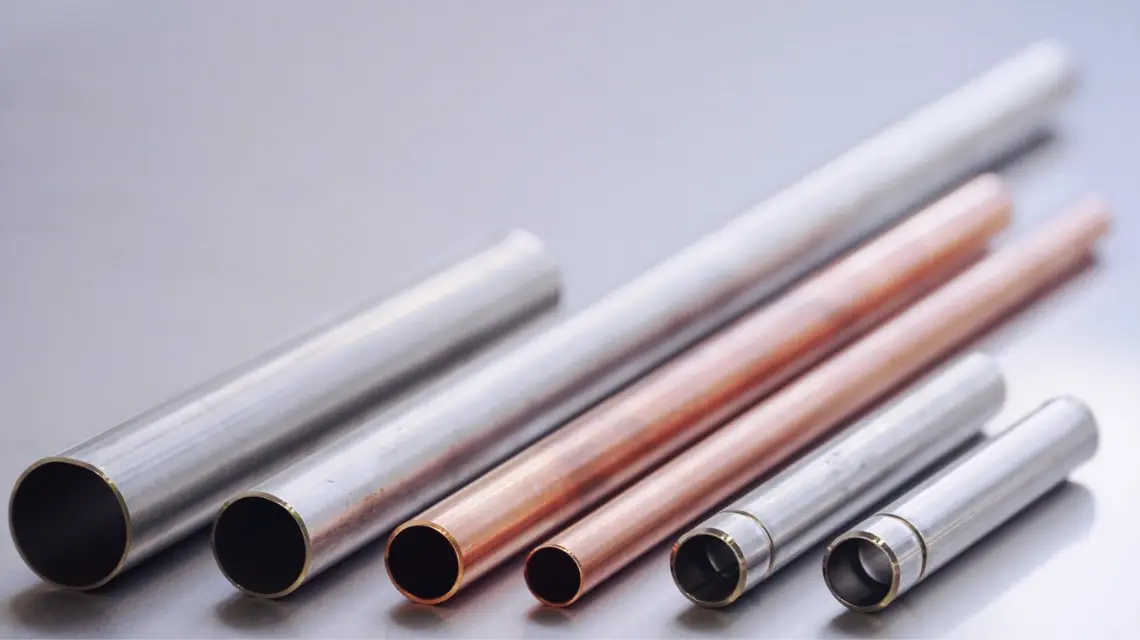

Material of the tube to be cut | Steel, stainless steel, copper and aluminium |
Tube thickness | mm 0,3 - 1,0 |
Outer tube diameter (to be defined) | mm 6 - 22 |
Max. length of tube to be cut | mm 6100 |
Cutting length | To be defined (mm) |
Cutting tolerance for cut lengths up to 1500 mm | mm ±0,8 |
Cutting tolerance for cut lengths between 1500 mm and 4300 mm | mm ±1 |
Capacity of the automatic feeder with diameter 7,5mm | pcs. 50 |
Space available in the feeder hopper | mm 440 |
Min. length to be cut | mm 100 |
Min length of tube scrapped per bar (for tubes with outer diameter over 10 mm) | mm 65 |
Min length of tube scrapped per bar (for tubes with outer diameter below 10 mm) | mm 340 |
Installed power | kW 3 |
Voltage | V/ ph/ Hz 400/ 3 phase/ 50 Hz |
Pneumatic supply | bar 6 |
Set up time when changing tube diameter | min. 10 - 15 |
Cutting cycle rate: wall thickness 0.3 mm | sec. 2.4 |
Cutting cycle rate: wall thickness 0.4 mm | sec. 2.6 |
Cutting cycle rate: wall thickness 0.5 mm | sec. 2.8 |
Cutting cycle rate: wall thickness 0.8 mm | sec. 3.5 |
Cutting cycle rate: wall thickness 1.0 mm | sec. 4 |
Pull/break | sec. 0.5 |
Move forward feeding | m/sec. 1 |
Drop new piece | sec. 1 |
Block pushing rod | sec. 0.5 |
Move back to unload of cut to 6000 mm zero and 3000 mm zero | m/sec. 1.33 |
Offload cut piece | sec. 0.8 |
