Oakley Industrial Machinery has developed a semi-automatic bending machine for heating elements capable of bending both finned heating elements and unfinned tubular heating elements with precision and efficiency. This versatile solution offers an ideal balance of performance, cost-effectiveness, and adaptability, making it perfect for manufacturers who require high-quality, consistent bends across a wide variety of element sizes and shapes.
Engineered for ease of use, the machine ensures precise and uniform bends, even for elements of varying lengths, with the option to program specific tolerances for each leg of the element. This bending machine has one programmable N.C. bending unit, while the elements are displaced manually during the bending steps. Its robust construction provides long-term reliability, minimizing maintenance and reducing downtime.
The concrete advantages that make the difference

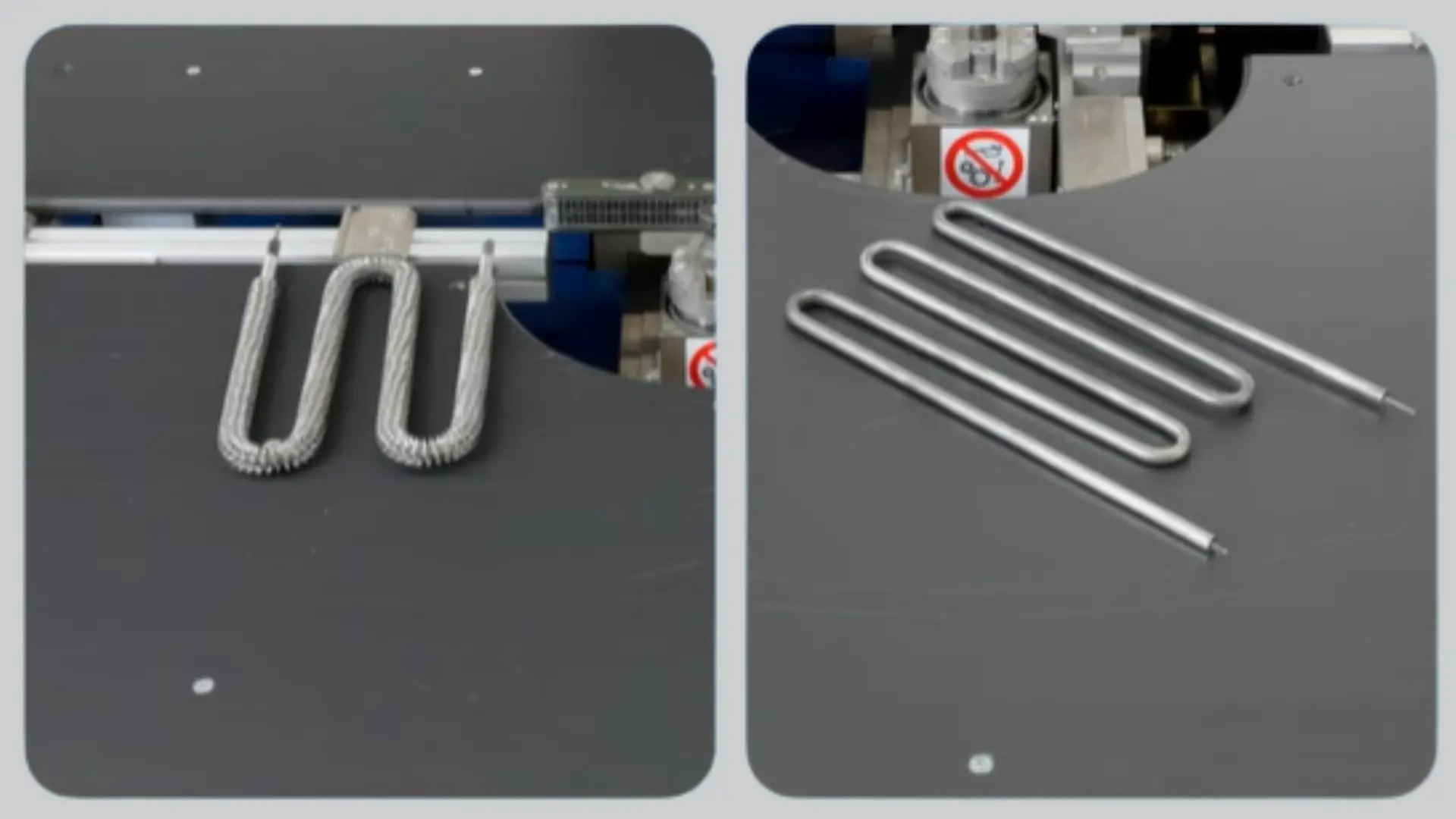

Suitable for both finned and tubular heating element and for a wide range of diameters, shapes, and bending angles.
Automatic compensation for length variations between elements, distributing differences to areas where strict tolerances are not required. (immagine da manuale del pannello elmiti)

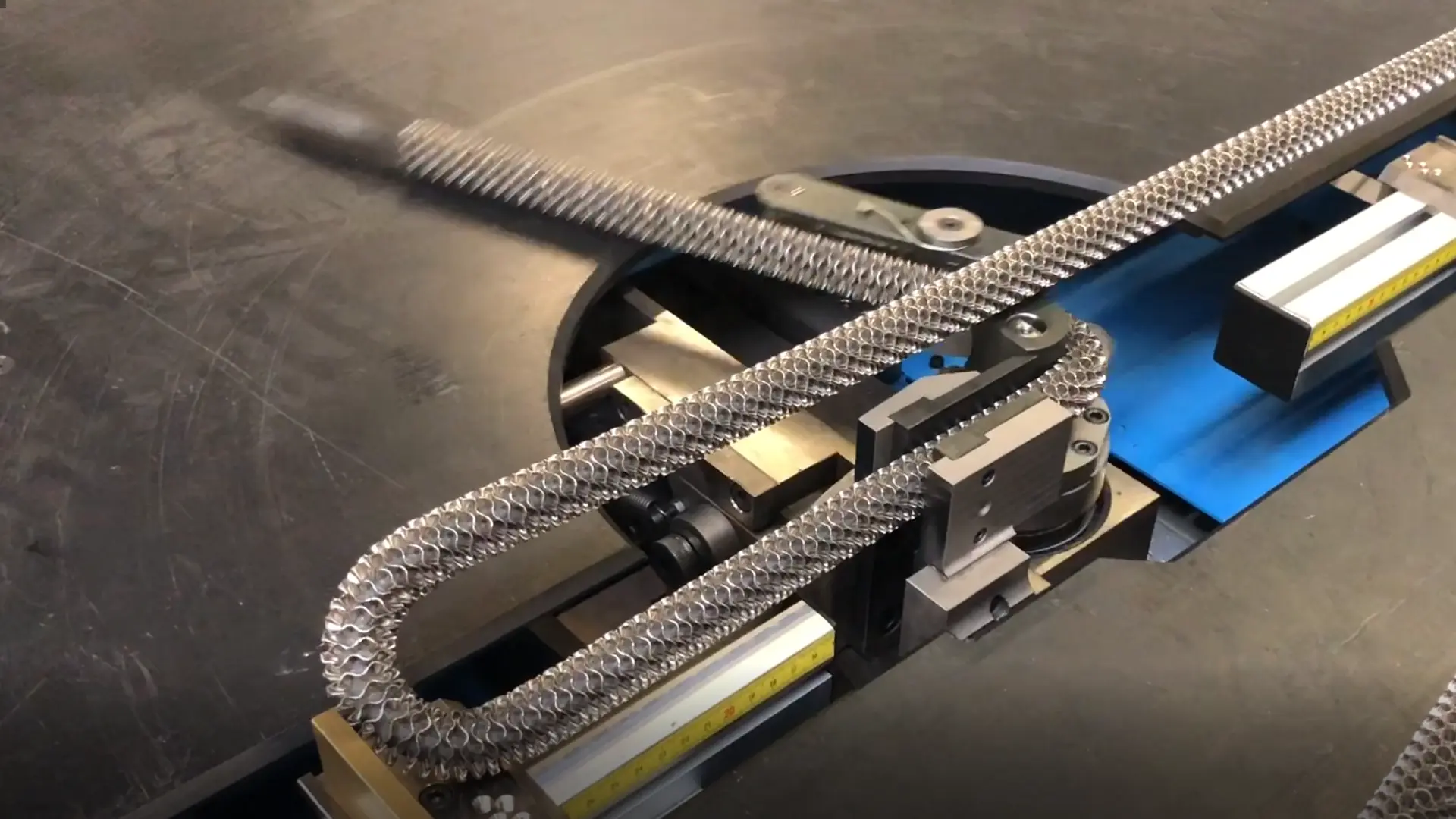

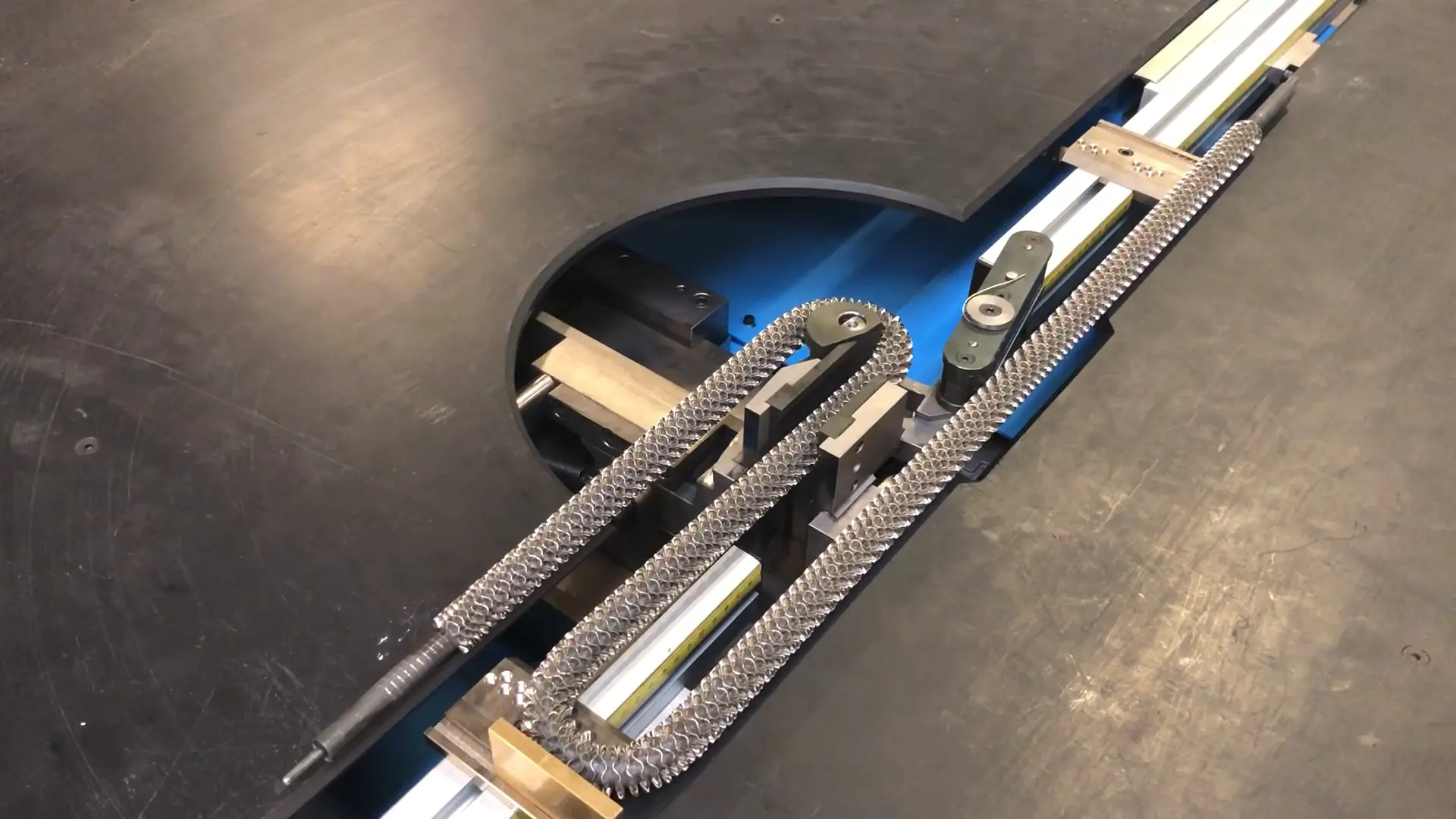

It is capable of producing tight-radius bends without compromising element quality.
Discover all the details of the machine

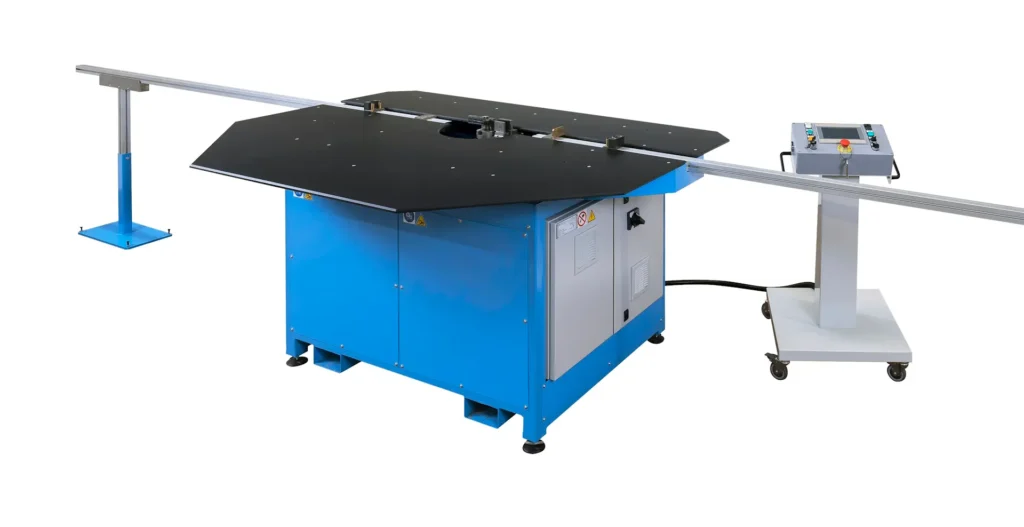

ELECTRO WELDED AND PAINTED STEEL BASEMENT
HORIZONTAL WORKING TABLE for supporting the element during bending
ROTATING BENDING UNIT Programmable bending unit up to 200°.
PNEUMATIC FIXED CLAMP
For holding the element during the bending cycle.
CENTRALIZING DEVICE
Centralizer for the element to be bent, complete with metric scales.
ELECTRICAL CABINET
Electrical cabinet complete with programming unit and two-hand push-button control console.
NOTE
The machine is equipped with tooling for one tubular heating element diameter, one finned heating element diameter, and one bending radius.
Discover all the configurations of the machine

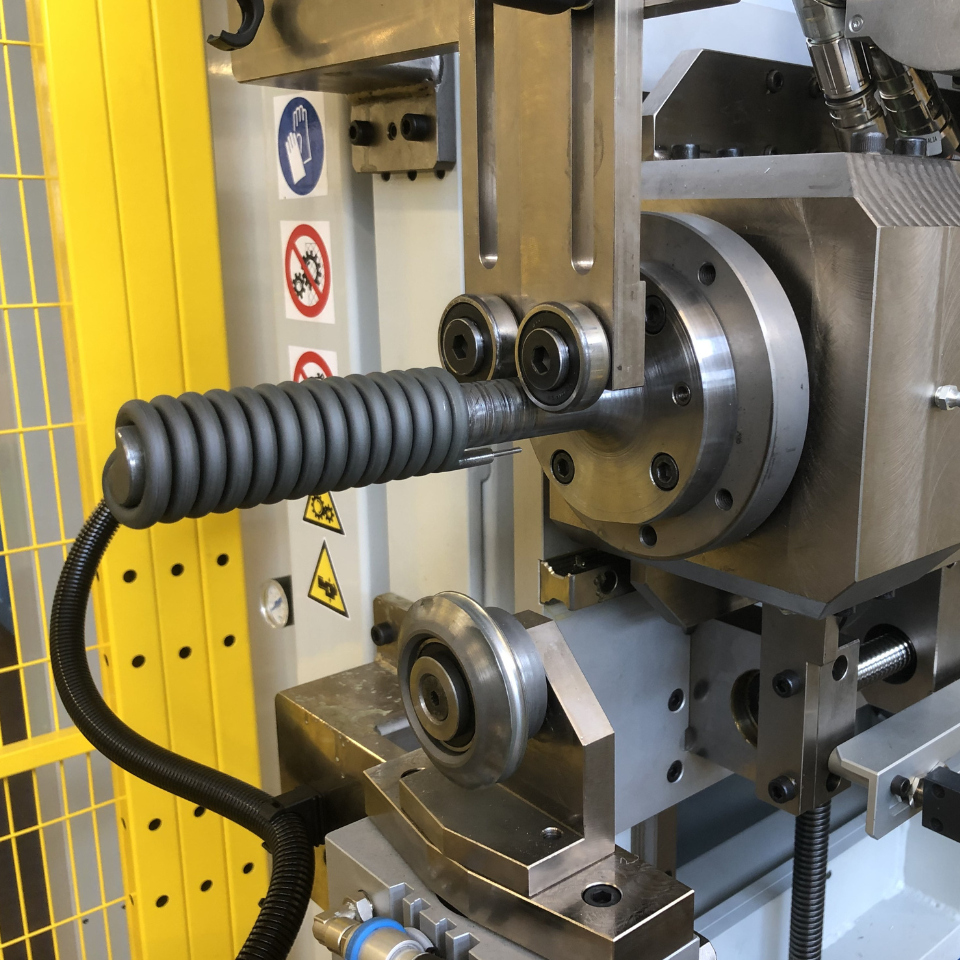

Thanks to a specific device, the machine is capable of forming small-radius bends in finned electric heaters.
Thanks to a specific device, the machine is capable of forming small-radius bends in finned electric heaters.
Element diameter | mm to be defined |
Maximum diameter finned element (element with fin “Dmax”) | mm reference to versions table |
Bending roll diameter (defined by the internal bend radius “Ri”) | mm to be defined |
Element per bending cycle | pz. 1 |
Set-Up Time * change length (with centralizer) | min. 2 - 4 |
* Change bending radius | min. 2 - 4 |
* Change diameter over fins | min. 4 - 5 |
* Change diameter of tube | min. 3 - 4 |
Programming | min. 2 - 3 |
Power supply | V to be defined |
Pneumatic supply | Ate 6 |
Installed power | KW 2 |
